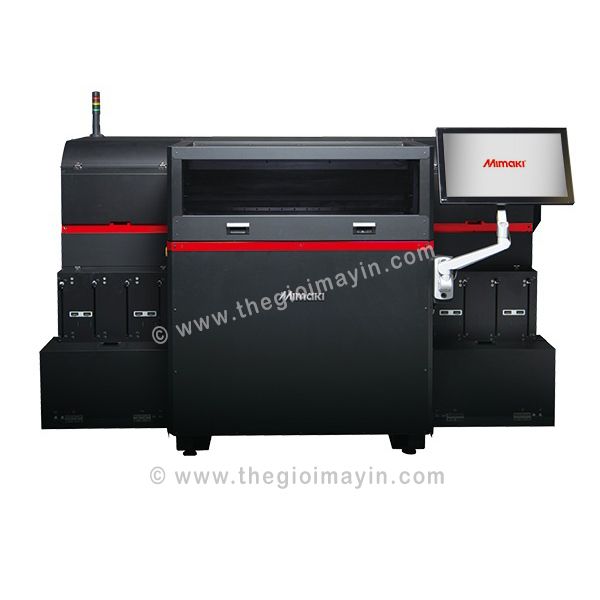

Máy in 3D Mimaki 3DUJ-553 là sản phẩm máy in ứng dụng Công nghệ in 3D đầu tiên trên thế giới (*), Với hơn 10 triệu màu và sử dụng mực UV tuần hoàn.
(*) Survey as of August, 2017 by Mimaki Engineering
Xem thêm: Công nghệ in 3D là gì?
Máy in 3D Mimaki 3DUJ-553 tái tạo màu sắc phong phú và sắc sảo, với hơn 10 triệu màu sắc. 3DUJ-553 giúp tạo ra sản phẩm mô hình sống động và chân thực nhất có thể.
>>Công nghệ in uv là gì?
>> Bạt hiflex là gì?
>> Decal là gì?
>> in lụa kỹ thuật số là gì?
Quy trình in 3D (3D modeling workflow)

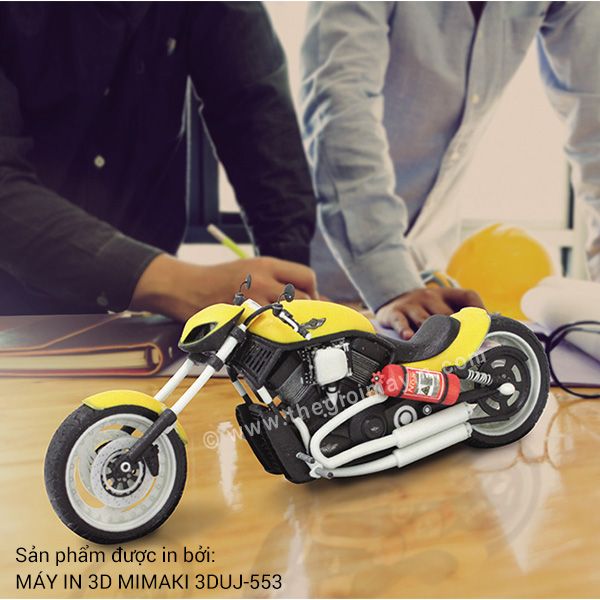

Một số hình ảnh sản phẩm mẫu:
Specifications
3DUJ-553 | ||
---|---|---|
Modeling method | UV curable inkjet | |
Available color number | Full color More than 10 million different colors |
|
Print head | On-demand piezoelectric print head (8 head inline) | |
Ink | Type/Color | Modeling ink: MH-100 (C, M, Y, K, White, Clear) Support material ink: SW-100 |
Tank volume | C, M, Y, K: 3L White, Clear, Support material: 5L |
|
Supply style | C, M, Y, K: 1L bottle White, Clear, Support material: 4.8L bottle |
|
Available modeling area (W × D × H) |
508 × 508 × 305 mm (20 × 20 × 12 in) | |
Minimum layer pitch | 20 μm | |
3D data format | STL, OBJ, VRML, PLY, 3MF | |
Software (Standard accessories) |
Layout software [Mimaki 3D Link] | |
Interface | Ethernet 1000BASE-TX | |
Power supply | Single phase AC 100-120V/220-240V±10% 50/60Hz±1Hz |
|
Power consumption |
Printer | 1300 W or less |
External PC | 300 W or less | |
Touch panel | 30 W or less | |
Safety standard | VCCI Class A / FCC Class A / Compliant with UL60950, ETL / CE Marking (EMC, Low Voltage Directive) / CB Report / RoHS / REACH |
|
Installation environment | Temperature | 15 – 35 °C (59 – 95 °F) |
Relative humidity | 35 – 60 %Rh (Non condensing) | |
Recomended Temperature | 20 – 25 °C (68 – 77 °F) | |
Dust | Places without mine dust (Dust amount 0.15mg/m³ or less) *1 | |
Dimensions (W × D × H) | 2,250 × 1,500 × 1,550 mm (88.6 × 59.1 × 61.0 in) | |
Weight | 600kg (1322.8 lb) |
*1: 0.15mg/m³ or less...The numerical value of the dust quantity equivalent to the office specified by the Building Standards Act of Japan.
- Some of the screens and printing samples in this website are artificial renderings.
- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of their respective owners.
- When installation and operation training etc. of products are demanded on purchasing, an extra cost would be necessary except the products cost.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
